D2 Tool Steel | 1.2379 | Cr12MoV | SKD11 steel
- What is D2 tool steel？

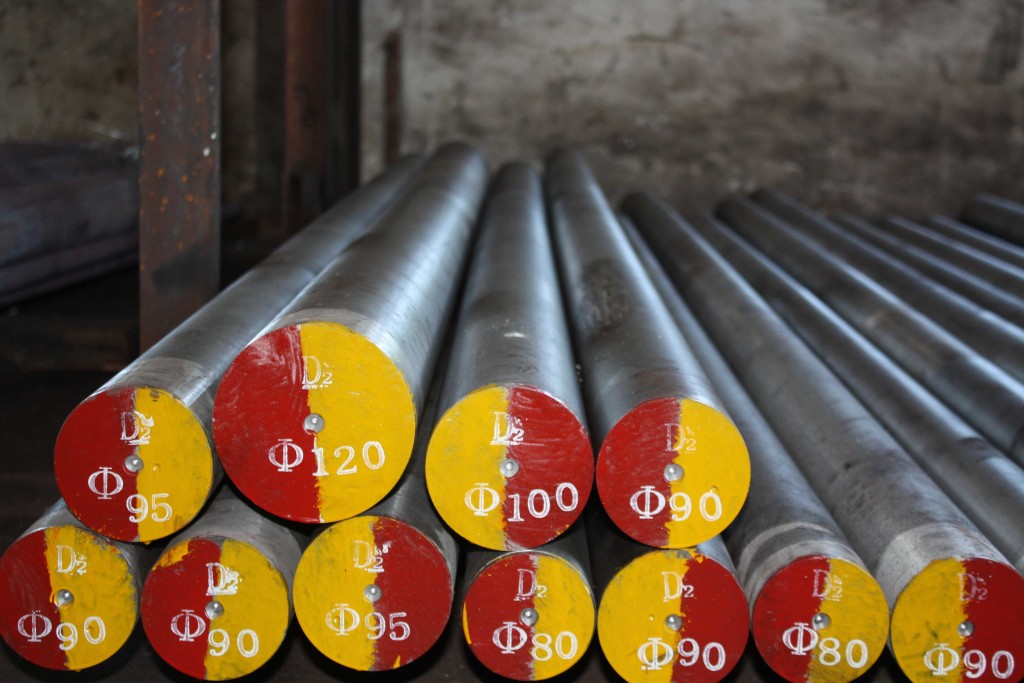

AISI D2 is a cold work tool steel. Cold work dies steel D2 tool steel with high abrasion resistance, micro-deformation, the wind hard tool steel, carbon content as high as 1.5%, chromium content as high as 11.5%, the heat treatment hardness can reach 60 HRC. Otai Special Steel is Chinese d2 steel china supplier in steel round bar, plate, flat.
D2 tool steel properties as below:
- D2 steel composition
| Grade | C(％) | P(%) | Si(％) | S(%) | Mn(％) | Cr(%) | Mo(％) | V(%) |
| AISI D2 | 1.40～1.60 | ≤0.030 | 0.10～0.60 | ≤0.030 | 0.20～0.60 | 11.0～13.0 | 0.70～1.20 | 0.50～1.1 |
- AISI D2 steel equivalent
1, JIS SKD11 steel
2, GB Cr12MoV steel
3, DIN.EN 1.2379 steel
4, KS STD11 cold work steel
D2 tool steel heat treatment
- Forging of D2 die steel
Preheat to 700 °C, Then rapidly heat to 900-1040 °C. Start to forge the D2 steel fabrication.
- Annealing of D2 cold work tool steel
Heat to 900 °C, soak enough time. cool in the furnace until to room temperature.
- Quenching of AISI D2 tool steel
For improve d2 tool steel hardness, Quenching is needed. Heat to 1010°C, heat thoroughly, cool in air.
- Tempering of Tool Steel D2
After Quenching, according to different tool requirement, Tempering at different temperature. Typical data as below:
| Temperature [°C] | 150°C | 200°C | 250°C | 300°C | 350°C | 400°C |
| Hardness [HRC] | 62-61 | 61-60 | 60-59 | 57-56 | 56-55 | 56-55 |
Mechanical properties and Physical properties of AISI D2 steel grade material
- Melting point 1421°C
- The density of D2 steel： About 7.85 kg/cm3 at room temperature
- Hardness： Rockwell C 62 HRC, Vickers 748 V
- Izod impact unnotched: 77 J
- Elastic modulus: 190-210 GPa.
- Thermal Properties: 10.4 x 10-6/ºC
Contact
Otai Special steel provides Sawing Blade, Milled, Ground, Grinding, cold drawn machining D2 steel Service. If you have any D2 steel inquiries and questions for Price, Application, hot treatment, Please don’t hesitate to contact us.
