12CrNi3 structural steel
OTAI SPECIAL STEEL is 12CrNi3 structural steel stockholders and suppliers from China. more than 25 years of experience in 12CrNi3 steel round bar, flat bar supply.
12CrNi3 steel is alloyed carburizing steel.
12CrNi3 steel properties as below:
Form of Supply

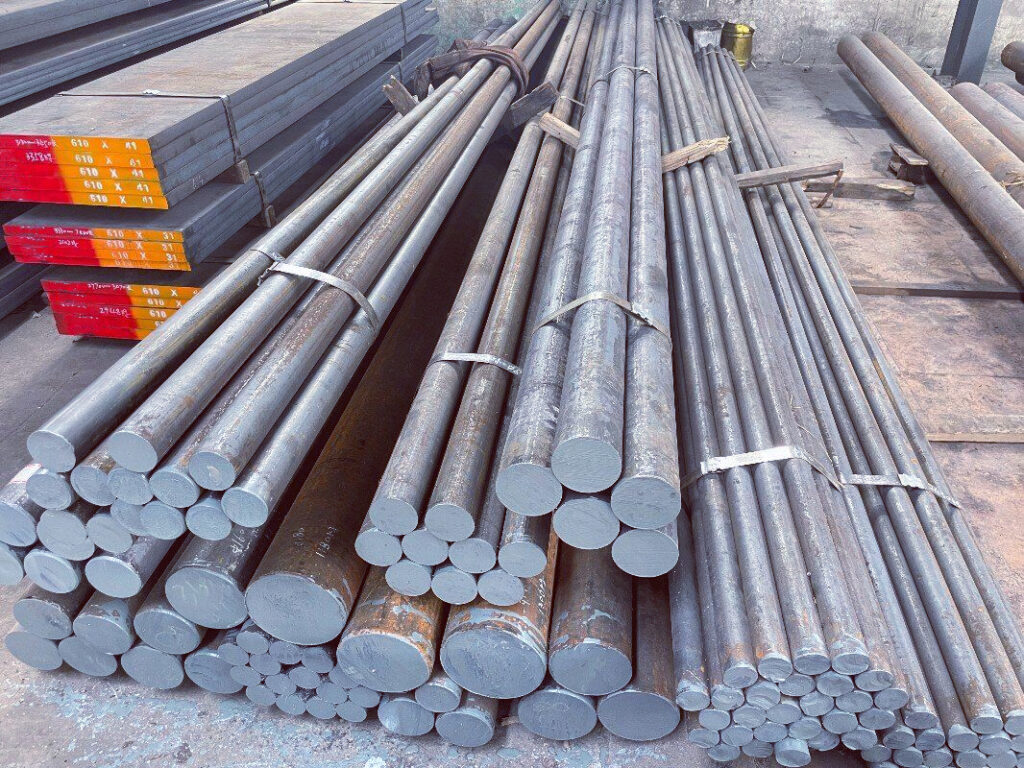

12CrNi3 steel, we can supply the round bar. Round bar can be sawn to your required lengths as one offs or multiple cut pieces. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
-
- Round
Chemical composition
| C(％) | 0.10～0.17 | Si(％) | 0.17～0.37 | Mn(％) | 0.30～0.60 | S(%) | ≤0.035 |
| P(%) | ≤0.035 | Cr(％) | 0.60～0.90 | Ni (％) | 2.75～3.15 |
Mechanical Properties
The mechanical properties of 12CrNi3 steels are outlined in the following table.
| Rp0.2 (MPa) | Rm (MPa) | Impact KV (J) |
Elongation A (%) |
A Z (%) | Hardness HB | |
| 912 (≥) | 669 (≥) | 31 | 11 | 42 | 413 | |
- Low-temperature toughness, small notch sensitivity
- After the steel quenching tempering at low temperature or high-temperature tempering has good comprehensive mechanical properties, good low-temperature toughness of steel, the notch sensitivity, and machinability is good, when the hardness is HB260 ~ 320 ~ 70 in addition, the relative cutting processability was 60% steel annealing at low hardness, plasticity is good.
- Therefore, either by adopting the method of machining manufacturing mold, Cold extrusion molding can also be used to manufacture molds. In order to improve the wear resistance of the mold cavity, the mold needs to be carburized after forming, and then quenching and low-temperature tempering.
- So as to ensure that the surface of the mold has high hardness, high wear resistance, and the core has good toughness, the steel is suitable for manufacturing large and medium-sized plastic mold. However, the steel tends to temper brittleness and form white spots.
Quality Assured Supply
12crni3 steel is supplied in accordance with our ISO 9001 : 2023 registration.
