AISI A4 Tool Steel
OTAI SPECIAL STEEL is A4 steel stockholders and suppliers from china. more 16 years experience in AISI A4 tool steel round bar, flat bar and plate supply.
AISI A4 Steel is a high quality， High carbon, high manganese, chrome, molybdenum alloy Cold work tool steel. Oil Quenched & Tempered Hardenss is 28-34 HRc. AISI A4 steel Annealing delivery hardenss less than 250HB. A4 tool steel properties as below:
Related Specifications ASTM A681-1999 DIN EN 10083/3 JIS G4053 GB/T 1299
Form of Supply

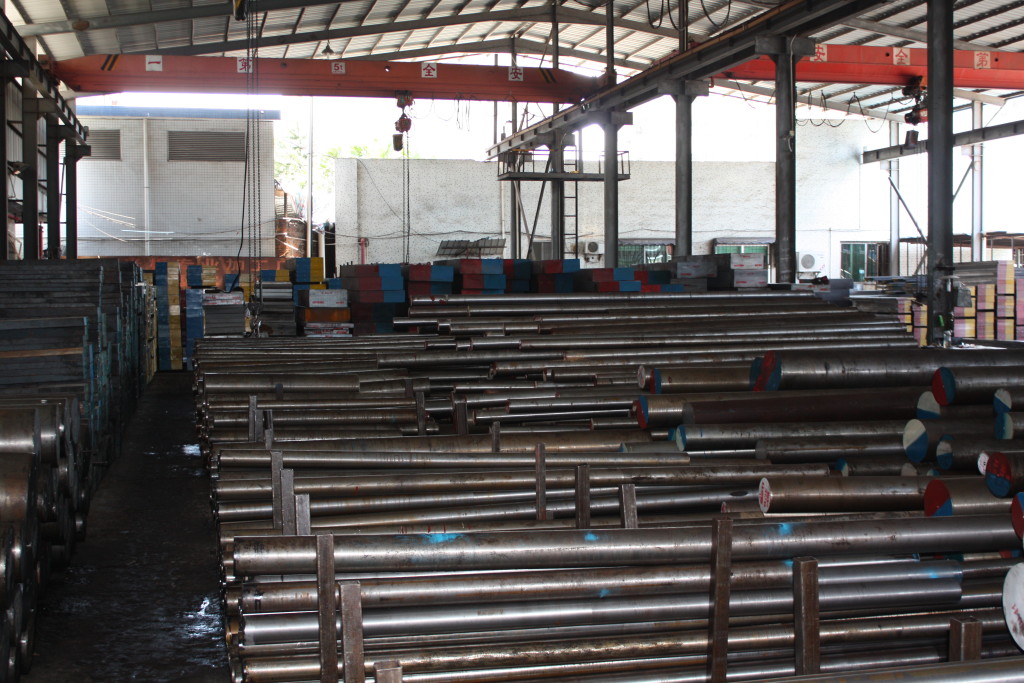

AISI A4 tool steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. AISI A4 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. A4 steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
-
- Round
-
- sheet
-
- Square
-
- Plate
Chemical composition
| C(％) | 0.95～1.05 | Si(％) | 0.10～0.50 | Mn(％) | 1.80～2.20 | P(％) | ≤0.030 |
| S(％) | ≤0.040 | Cr(％) | 0.90～1.20 | Mo (％) | 0.90～1.40 | V(％) | / |
Heat treatment Related
- Forged of A4 Tool steel
Slowly heated the A4 steel material to 650-680°C (1202-1256°F) before raising the temperature to 1050-1100°C (1922-2120°F) and soak A4 tool steel material until uniformly heated. Initial hammer blows should be light due to the comparatively high hot strength of this steel.
The A4 steel forged temperature should be maintained above 1000°C(1832℉) until the A4 steel metal begins to yield. Final forged should not be done below 900°C(1652℉). Slowly cool after forged is essential to avoid the possibility of cracking.
- Annealing of A4 Tool steel
Slowly heated A4 steel to 850-870 ℃（1562-1598°F） and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace at a rate of 4°C (40°F) per hour or less.. The A4 tool steel will get MAX 250 HB （Brinell hardness）.
- Hardening of A4 tool steel
A4 steels should be heated uniformly to 790-820°C (1436-1508°F) until completely heated through. Then heated to the hardening temperature of 950-980°C(1742-1796℉), soak at the temperature enough time, let A4 steel to be thoroughly heated .
Then withdraw A4 steel tools from the furnace，either air cool or oil quench.
.Tempering of A4 tool steel
Tempering of A4 steels is performed at 150-400°C (302-752°F), Soak well at the selected temperature and soak for at least one hour per 25mm of total thickness. Get Rockwell C hardness of 57 to 62. Others different Heat treatment temperature will get different hardness. Below only for reference.
Temperature [℃] 150 200 250 300 350 400
Hardness [HRc] 62-61 61-60 60-59 59-58 58-57 58-57
Mechanical Properties
The mechanical properties of A4 tool steels are outlined in the following table.
| Bulk modulus (typical for steels) | Machinability (based on carbon tool steel) | Shear modulus | Poisson’s ratio | Elastic modulus) | Thermal expansion | |
| GPa | GPa | GPa | 20-100℃ | |||
| 140 | 65% | 78 | 0.27-0.30 | 190-210 | 10.7 x 10-6/ºC | |
Applications
A4 steels are mainly used for slitters, die shapes.
A4 tool steel typical applications include cold forging dies, coining dies, cold heading dies, shear blades, knurling tools and as cutting knives for paper, wood, fibre and resin-bonded aterial, etc.
Regular size and Tolerance
| 1) Hot Rolled round bar | |||
| Diameter (mm) |
Diameter Tolerance (mm) |
Diameter (mm) |
Diameter Tolerance (mm) |
| ≤12.70 | -0.13 ～0.30 | >50.80～63.5 | -0.25～0.76 |
| 12.7～25.40 | -0.13～0.41 | >63.50～76.20 | -0.25～1.02 |
| >25.4～38.10 | -0.15～0.51 | >76.20～101.60 | -0.30～+1.27 |
| >38.1～50.80 | -0.20～0.64 | >101.60～203.20 | -0.38～3.81 |
| 2) Hot Rolled steel plate | |||
| Thickness (mm) |
Thickness Tolerance (mm) |
Thickness (mm) |
Thickness Tolerance (mm) |
| ≤25.4 | -0.41～0.79 | >127～152 | -1.60～2.39 |
| >25.4～76 | -0.79～1.19 | >178～254 | -1.98～3.18 |
| >76～127 | -1.19～1.60 | >254～305 | -2.39～3.96 |
Others A4 have not specified size, pls contact our experienced sales team.
AISI A4 tool steel round bar and flat sections can be cut to your required sizes. A4 tool steel ground bar can also be supplied, providing a high quality tool steel precision ground tool steel bar to your required tolerances. AISI A4 steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
Contact our experienced sales team to help you with your A4 tool steel questionsadn enquiry by Email or Telphone. The A4 steel questions will be reply in 24 hours.
