OTAI SPECIAL STEEL is SKS3 steel stockholders and suppliers from china. more 16 years experience in JIS SKS3 tool steel round bar, flat bar and plate supply.

JIS SKS3 Steel is a high quality Cold work tool steel, It belong to the high quality high carbon alloy tool steel. Oil Quenched & Tempered Hardenss is 28-34 HRc. JIS SKS3 steel Annealing delivery hardenss less than 250HB.

Related Specifications ASTM A29/A29M DIN EN 10083/3 JIS G4404 GB/T 3077

SKS3 steel data pdf down


Form of Supply

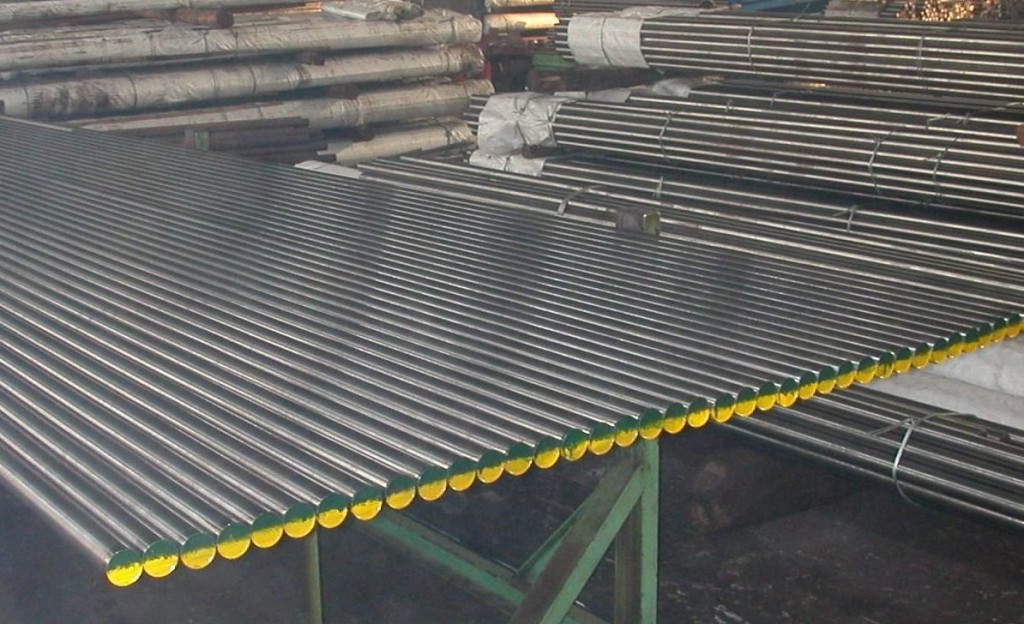

JIS SKS3 tool steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. JIS SKS3 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. SKS3 steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.


Chemical composition of SKS3 steel

C(%) 0.90~1.00 Si(%) ≤0.35 Mn(%) 0.90~1.20 P(%) ≤0.030
S(%) ≤0.030  Cr(%) 0.50~1.00 V (%) W(%) 0.50~1.00

SKS3 steel Heat treatment Related

  • Annealing of SKS3 Tool steel

Slowly heated to 740-760 ℃(1364-1400℃) and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. The SKS3 tool  steel will get MAX 250 HB (Brinell hardness).

  • Hardening of SKS3 tool steel

SKS3 steels should be heated uniformly to 780-820°C (1436-1508°F) until completely heated through. If needed, the steels can be preheated at 300-500°C (572-932°F). About 30 min/per 25 mm of ruling section is to be provided and then the steels should be immediately quenched in oil.

  • Tempering of SKS3 tool steel

Tempering of SKS3 steels is performed at 100-350°C (212-662°F), Soak well at the selected temperature and soak for at least one hour per 25mm of total thickness. Get Rockwell C hardness of 55 to 64.

Temperature [℃]    100     150        200      250       300             350

Hardness [HRc]     64-63   63-62     62-61   60-59    58-57          56-55

O1 heat treatment


Mechanical Properties

The mechanical properties of SKS3 tool steels are outlined in the following table.

Elastic modulus
(@399°C/750°F, hardened to 62 HRC )
Elastic modulus (hardened to 62 HRC) Yield
(0.2%, hardened to 55 HRC)
Yield
(0.2%, hardened to 60 HRC)
Yield
(0.2%, hardened to 62 HRC)
Yield
(0.2%,hardened to 50 HRC)
GPa GPa Mpa Mpa Mpa MPa
172 193 1800 2150 2200 1350

SKS3 steel Applications

SKS3 steels are mainly used for short run tooling for cold forming dies, blanking dies, and cutting tools operating at ambient temper.

SKS3 tool steel typical applications include medium run dies, intricate press tools, drawing punches, broaches, bushings, lathe centres, chuck jaws, master cavity sinking hobs, paper cutting machine knives, plug gauges, thread gauges and precision measuring tools. Also commonly used in applications such as cams, cloth cutting knives, cold taps, reamers, collets, cutting hobs, strip slitting cutters, trimmer dies, tube expander rolls, plastic moulds and woodworking knives ature.


Regular size and Tolerance

1) Hot Rolled round bar
Diameter
(mm)
Diameter Tolerance
(mm)
Diameter
(mm)
Diameter Tolerance
(mm)
≤12.70 -0.13 ~0.30 >50.80~63.5 -0.25~0.76
12.7~25.40 -0.13~0.41 >63.50~76.20 -0.25~1.02
>25.4~38.10 -0.15~0.51 >76.20~101.60 -0.30~+1.27
>38.1~50.80 -0.20~0.64 >101.60~203.20 -0.38~3.81
2) Hot Rolled steel plate
Thickness
(mm)
Thickness Tolerance
(mm)
Thickness
(mm)
Thickness Tolerance
(mm)
≤25.4 -0.41~0.79 >127~152 -1.60~2.39
>25.4~76 -0.79~1.19 >178~254 -1.98~3.18
>76~127 -1.19~1.60 >254~305 -2.39~3.96

Others SKS3 have not specified size, pls contact our experienced sales team.


Processing

JIS SKS3 tool steel round bar and flat sections can be cut to your required sizes. SKS3 tool steel ground bar can also be supplied, providing a high quality tool steel precision ground tool steel bar to your required tolerances. JIS SKS3 steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.


Contact our experienced sales team to help you with your SKS3 tool steel questionsadn enquiry by Email or Telphone. The questions will be reply in 24 hours.
