DIN 42CrMo4 Steel is a common chromium-molybdenum steel that usually used after quenched and tempered, with high intensity, high hardenability. DIN 42CrMo4 round steel has better performance than 34CrMo4 steel due to the carbon and chromium content is higher. 42CrMo4 alloy steel| 1.7225 | SCM440 | 4140 has higher strength and hardenability. DIN 42CrMo4 alloy material also has high fatigue strength and good low-temperature impact toughness. The temper brittleness is not obvious.
DIN 42CrMo4 Steel is a high quality Quenched and Tempered Alloy Structural steel, It belong to the high quality low carbon,Low alloy chromium, molybdenum, nickel case hardening steel. Oil Quenched & Tempered Hardness is 18-22 HRC. Annealing delivery hardenss less than 250HB. 42CrMo4 With a lower carbon content range, So have good weldability.
DOWNLOAD 4140 Steel Plate Stock List – updated on Aug-11, 2020
Related Specifications ASTM A29/A29M DIN EN 10083/3 JIS G4053 DIN/T 307
1.DIN 42CrMo4 steel | 1.7225 | SCM440 | 4140 Form of Supply

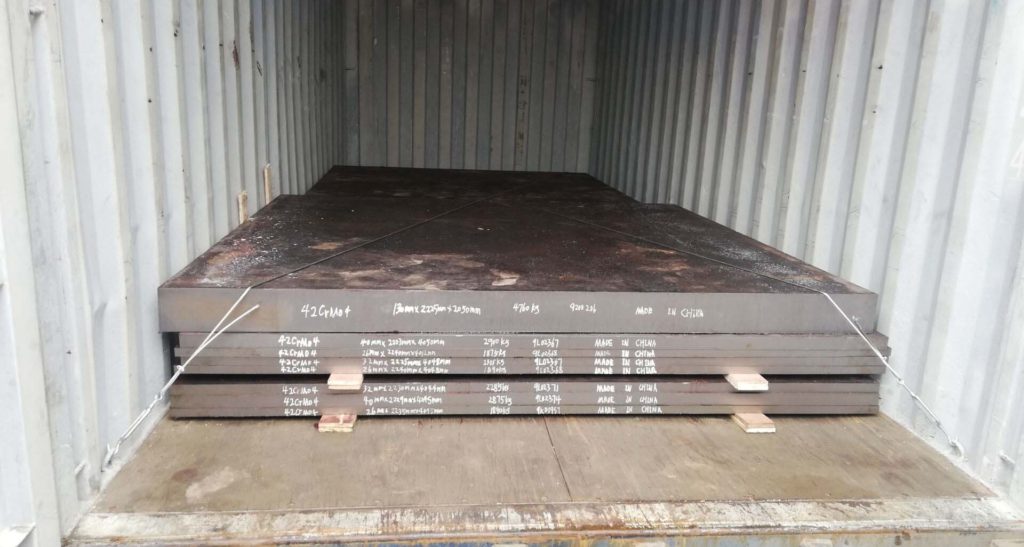

DIN 42CrMo4 Alloy steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. 42CrMo4 alloy steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
2. 42CrMo4 steel Chemical composition
| C(％) | 0.38～0.25 | Si(％) | ≤0.40 | Mn(％) | 0.60～0.90 | P(％) | ≤0.035 |
| S(％) | ≤0.035 | Cr(％) | 0.90～1.20 | Mo(%) | 0.15～0.30 |
3. Equivalent Of 42CrMo4 alloy Structure Steel
| USA | Germany | China | Japan | France | England | Italy | Poland | ISO | Austria | Sweden | Spain |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | ISO | ONORM | SS | UNE |
| 4140 / G41400 | 42CrMo4 / 1.7225 | 42CrMo | SCM440 | 42CD4 | 708M40 | 42CrMo4 | 2244 |
4. 42CrMo4 steel Heat treatment Related
- Annealing of 42CrMo4 Alloy structural steel
Slowly heated to 872 ℃ and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. The 42CrMo4 alloy steel will get MAX 250 HB （Brinell hardness）.
- Hardening of DIN Alloy structural steel 42CrMo4
First quenching heated slowly to 880°C, Then after adequate soaking at this temperature quench in oil or water. Temper as soon as tools reach room temperature. Second quenching heat to 780-820°C， then quenching in oil or water.
- Tempering of 42CrMo4 Alloy structural steel
Heat to 205-649°C, then cool in water or oil. normal delivery hardness 18-22 HRC.
- Forging of Alloy Steel 42CrMo4
DIN 42CrMo4 alloy steel is forge at 926 to 1205°C (1700 to 2200°F)
5. DIN 42CrMo4 steel Mechanical Properties
The mechanical properties of annealed DIN 42CrMo4 alloy steel are outline in the table below
| Tensile strength | Yield strength | Elongation | Reduction of area | Poisson’s ratio | Impact absorbing energy |
| σb/MPa | σs/MPa | δ5(％) | ψ(％) | AKV/J | |
| 1100-1300 | 900Min | 10 min | 40 min | 0.27-0.30 | 35 Min |
6. DIN 42CrMo4 steel Applications
DIN 42CrMo4 steel Strength, high hardenability, toughness, and quenching small deformation, high strength and creep rupture strength at high temperatures. Requirements for the manufacture of higher intensity than the 35CrMo steel and tempere forging greater cross-section, such as a large locomotive traction gears, supercharger drive gear, pressure vessels, gear, rear axle, greatly affecte by load and spring clip link It can also be use to 2000m deep oil drill pipe joints and fishing tools, and can be use bending machine mold, etc.
7. DIN 42CrMo4 steel Regular size and Tolerance
GB 42CrMo4 Steel round bar: Diameter Ø 5mm – 3000mm
Steel plate: Thickness 5mm – 3000mm x Width 100mm – 3500mm
42CrMo4 Steel Hexagonal bar: Hex 5mm – 105mm
Others 42CrMo4 have not specified size, pls contact our experienced sales team.
8. DIN 42CrMo4 steel Processing
DIN 42CrMo4 alloy steel round bar and flat sections can be cut to your require sizes. 42CrMo4 alloy steel ground bar can also be supplie, providing a high quality tool steel precision ground tool steel bar to your require tolerances. DIN 42CrMo4 steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
Contact our experienced sales team to help you with your DIN 42CrMo4 steel questions and enquiry by Email or Telephone. The questions will be reply in 24 hours.
