DIN C45E steel is a medium carbon steel. It also is a general engineering structural steel. It have good machinability  and high tensile properties. C45E steel normal supply steel Plate, Round bar, Flat bar, Square bar, Hexagonal bar, Pipe. Normal provide the hot rolled black surface, cold drawn birght surface, large size forging is better. Delivery harndess 18-25HRc.

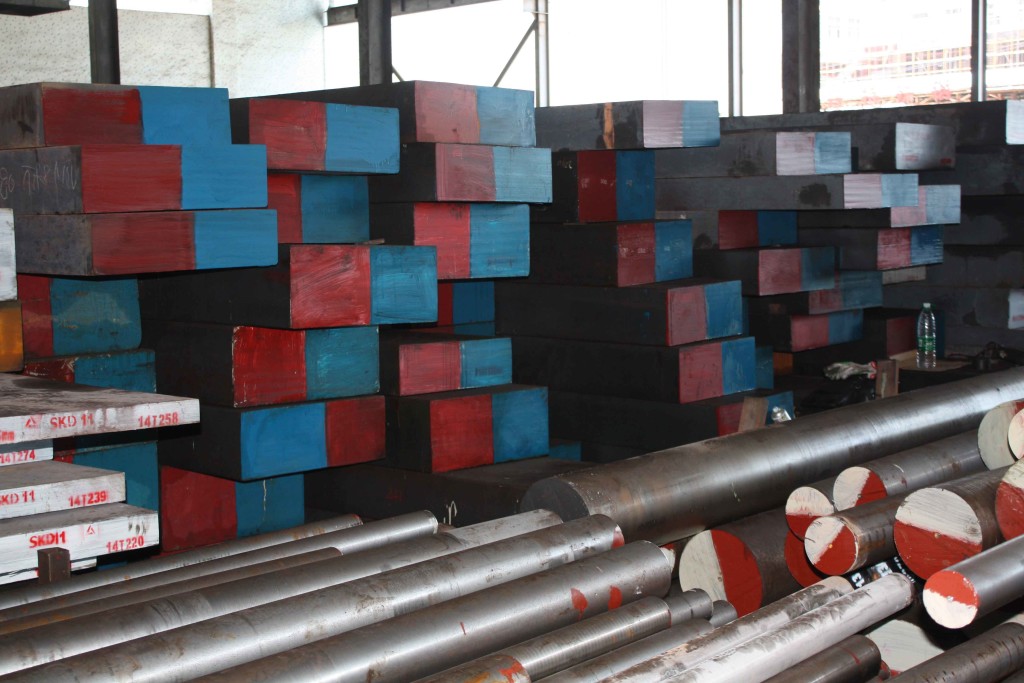

C45E steel round bar

Chemical composition of C45E steel

DIN W-Nr C Si Mn P S
1.1191/C45E/CK45 0.42～0.50  ≤0.40 0.50～0.80 ≤0.035 ≤0.035
ASTM A29/29M C Si Mn P S
1045 0.43～0.50 / 0.60～0.90 ≤0.040 ≤0.050
GB/T C Si Mn P S
45 0.42～0.50 0.17～0.37 0.50～0.80 ≤0.035 ≤0.035
BS C Si Mn P S
080M40 0.42～0.50 ≤0.40 0.50～0.80 ≤0.035 ≤0.035
JIS C Si Mn P S
S45C 0.42～0.48 0.15～0.35 0.60～0.90 ≤0.030 ≤0.030

C45E steel is Equivalent with EN8 or 080M40 and  AISI 1045,  GB 45#, JIS S45C.  Steel C45E round bar  is suitable manufacture gears, bolts, nuts, axles, keys andshafts.

Supply Range and Form of Steel C45E

  • C45E Steel Round Bar: Ø5mm to 3000mm
  • C45E Steel Plate: Thick 10mm to 1800mm x Width 100mm to 3000mm
  • C45E Steel Sheet: Thickness 1 mm to 8mm x Width 50mm to 2300mm
  • C45E steel Square: 10mm to 810mm
  • C45E steel Hexagonal bar: 5mm to 110mm



Surface treatment: Black, Turned Bright, Peeled, Rough Machined, Cold Drawn Birght, Or As Customers requirement.

Application Of Carbon Steel DIN C45E

DIN C45E steel grade material round bar, steel plate, flate bar, Hexagonal bar, Square bar, usage is very widely in industry products. Such as Axles,Nuts and Bolts, Crankshafts, Gearings, Bearings, Guide bar, wheel forging, etc.

Specifications of DIN C45E steel metal material

  • Americal: ASTM A29/A29M AISI 1045
  • Germany: DIN 17200 C45E / CK45 / W-Nr 1.1191
  • Chinese: GB/T699-1999  45#
  • British: BS970-1, EN10083-2 080M40
  • Japan: JIS G4051 S45C

Physical properties of Steel C45E

  • Density: 7.85 kg/cm3
  • Thermal conductivity: 51.9 W/mK
  • Thermal expansion co-efficient (@0.000-100°C/32-212°F): 11.2 µm/m°C

Machanical Properties of DIN C45E Carbon Steel

  • Tensile Strength: 585MPa
  • Yield Strength: 450MPa
  • Poisson’s Ratio: 0.29
  • Modilus of Elasticity: 200GPa
  • Shear Modilus: 80GPa
  • Hardness: 163 HBS

Forging of Din C45E steel

Heat C45E Fabrication to 850 to 1200°C, forged C45E by Hammer.

Annealing of Carbon Steel C45E material

680-710°C, Soak well. then slowly cool in furnace

Hardening of C45E

At 820-855°C, Quenching in air or oil. before quench, ensure heat thoroughly.

Tempering of Steel Din C45E

Heat to 550-660°C for Tempering. As different hardness and requirement, confirm temperature.

* Heat treatment include heating rate, cooling rate, soaking times. different size and shape

also effect C45E steel Heat treatment results. so we advice you contact your heat treatment get more assitance.

Welding of DIN C45E Carbon Steel material

C45E is a medium carbon steel material, its welding must be no careless. Pls contact your welding provider. or as the C45E steel material welding assistance Data.
